UFT Integration

H-TEST allows UFT tests execution in order to integrate both tools.

Prerequisites

• H-TEST must be installed and accessible.
• UFT must be installed and accessible.
• An ALM user with enough rights to run the script must be available.

H-TEST

The execution is made from a H-TEST diagram; the following elements are required:

• “User” object.
• Message to execute the command.

The configuration of these objects are as follows:

• User:
  • Mapping as “Adaptor user Object”.

• Message:
  • Properties: Predefined Function: executeCommand.
  • Mapping: String Value: cscript.exe.
  • “C:\TAST\PayIntlSepa\Payments_RunUft.vbs”. The vbs file into quotes is the one containing the execution of the script, as explained later on.

UFT

Steps to follow:

• Launch the UFT.
• Register in ALM with a user with enough permissions to run the script.
• Leave marked the tickbox for connecting to ALM with each new start.
• Export the script to an available folder (several folders and files will be created inside this path).
• The UFT can be closed or left open.

NECESITO IMAGEN

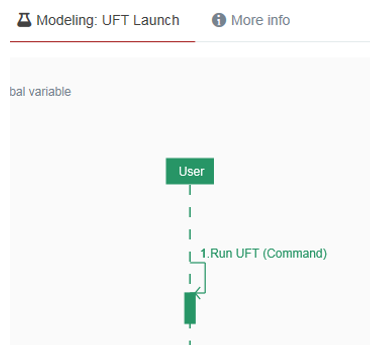

UFT Execution from H-TEST

NECESITO IMAGEN
