Status Not Completed

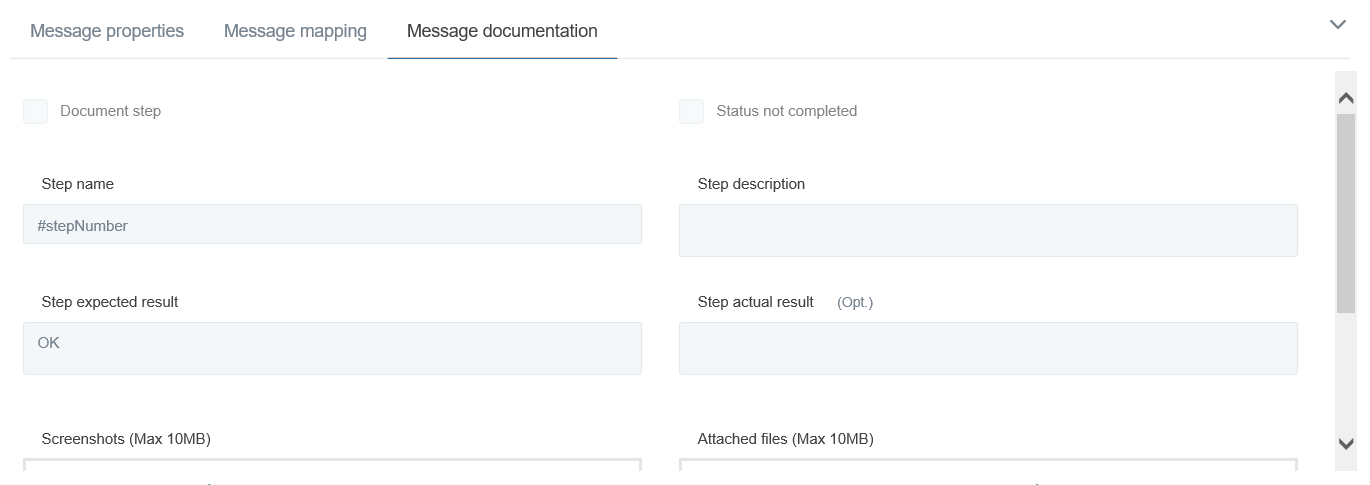

Is a check box that has been added in message documentation. This check only can be selected if “Document step” is checked. This new checkbox indicates if the status of the execution is completed or not.

How does status not completed works?

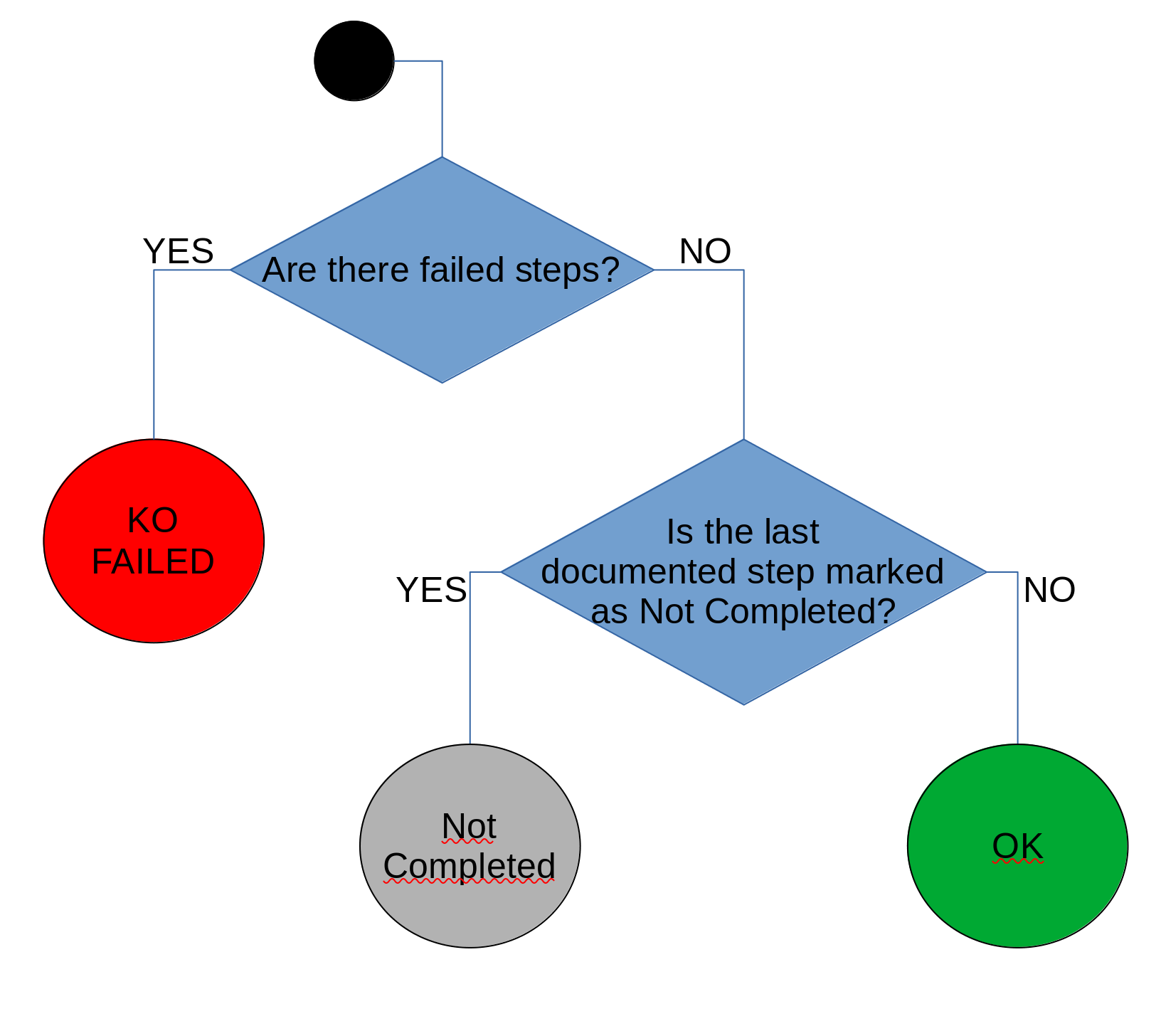

To explain how this new functionality works we can use the following diagram:

So basically, following this flow scheme we can conclude that the user will obtain a status not completed if the last message in the diagram have the not completed check checked.

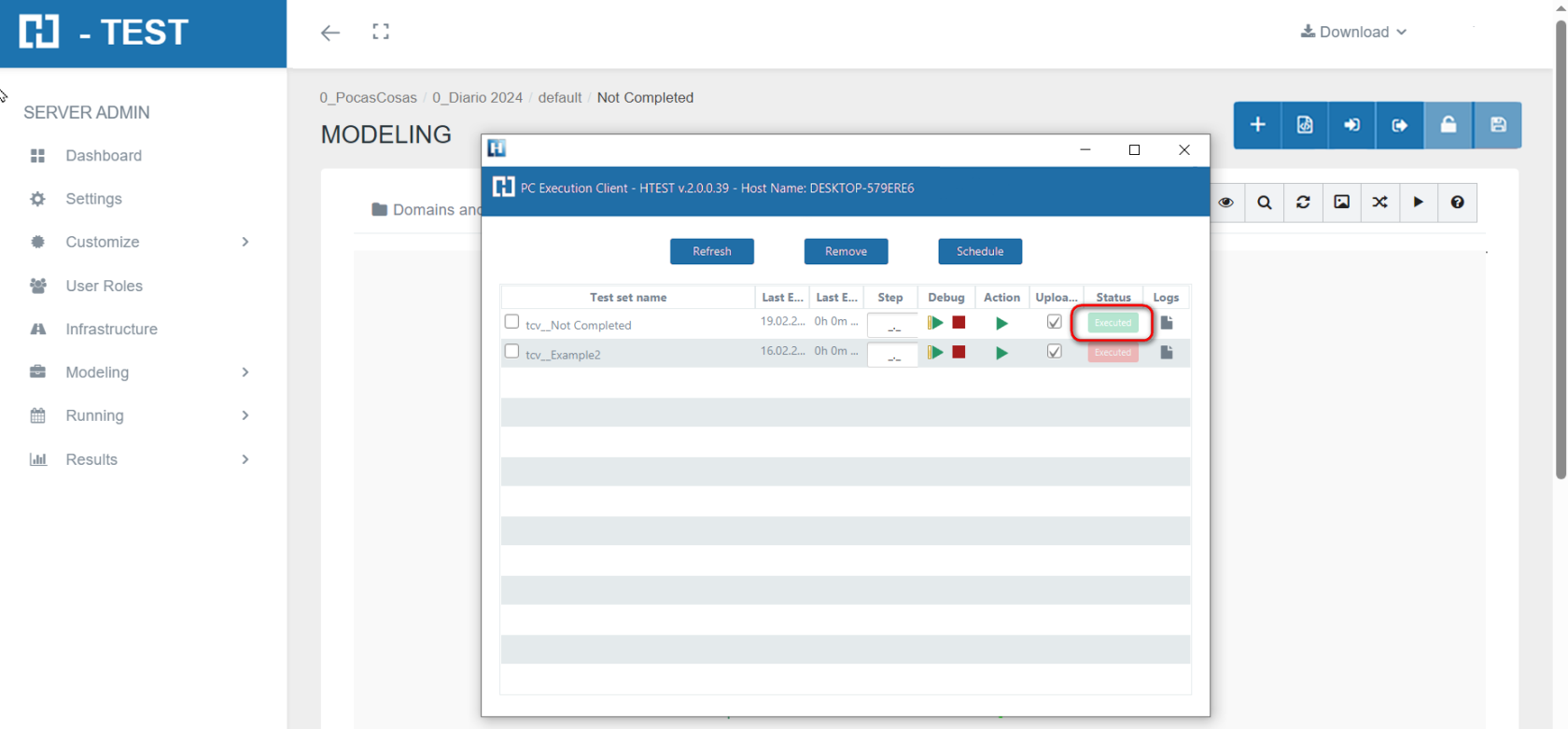

If the result of the diagram is not completed: In the client we will obtain a OK “green execution result”.

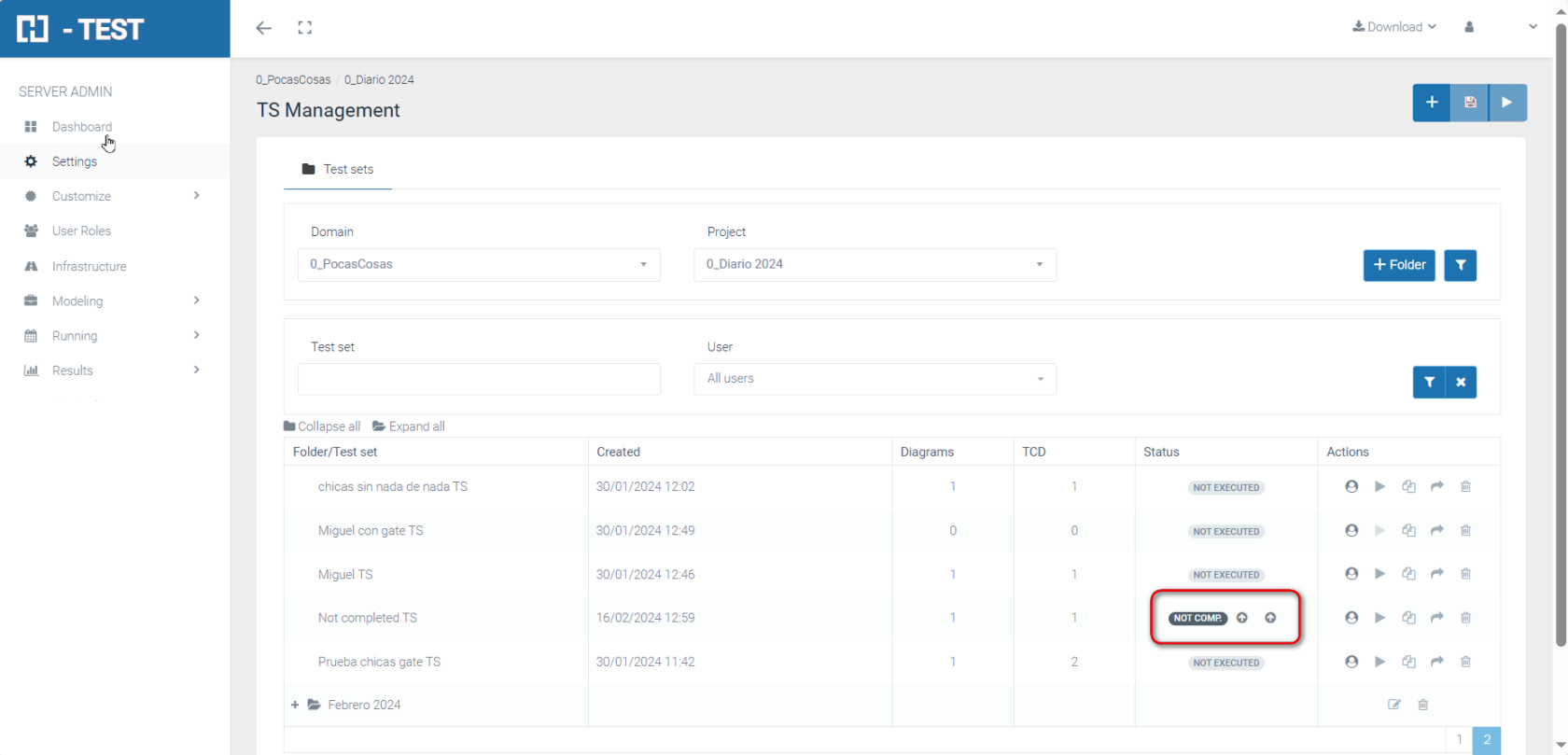

Nevertheless in TS Management we will obtain a “NOT COMPLETED” into a black badge

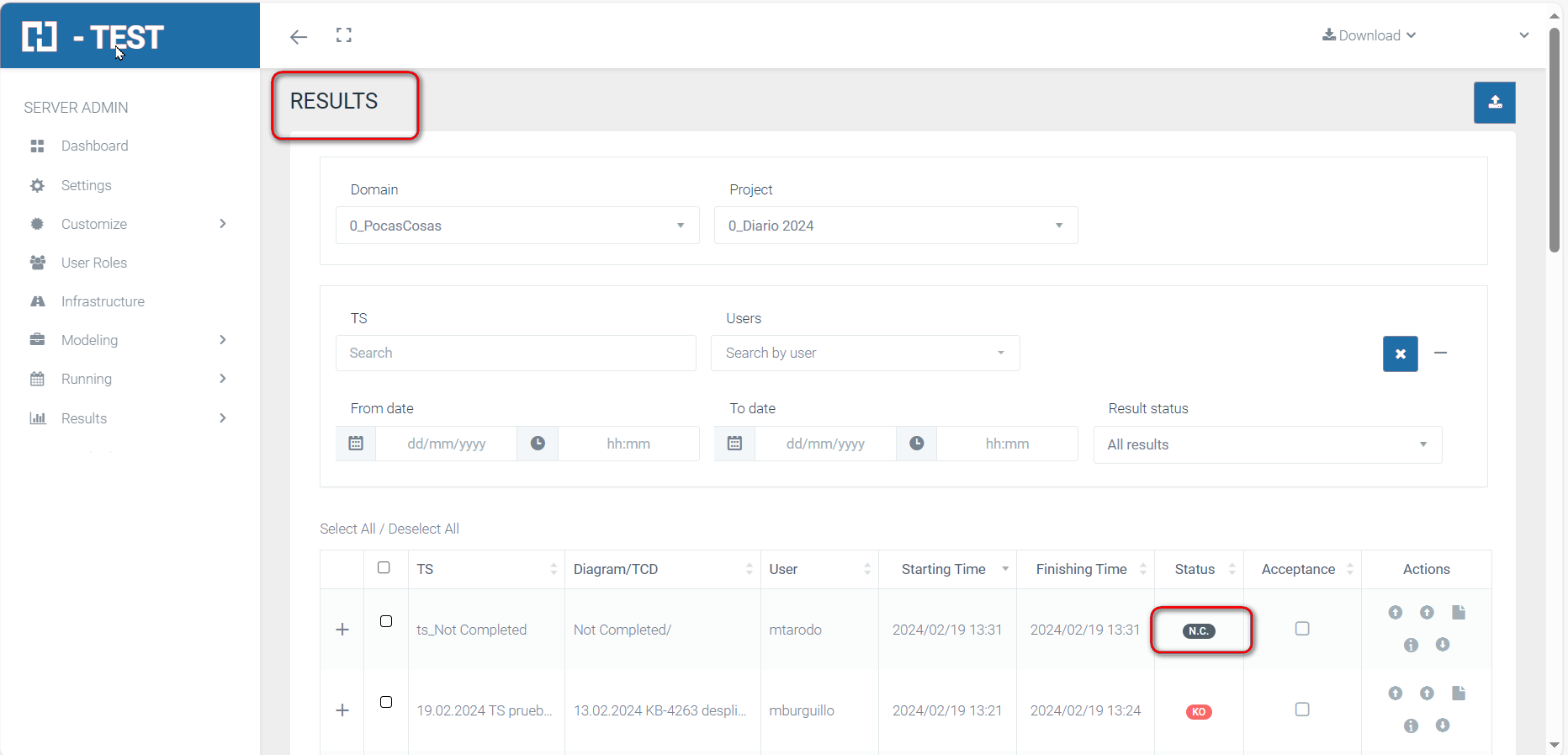

and in the result page we will obtain a “N.C.” in a black badge too that indicates the not completed status.

Not Completed in ALM

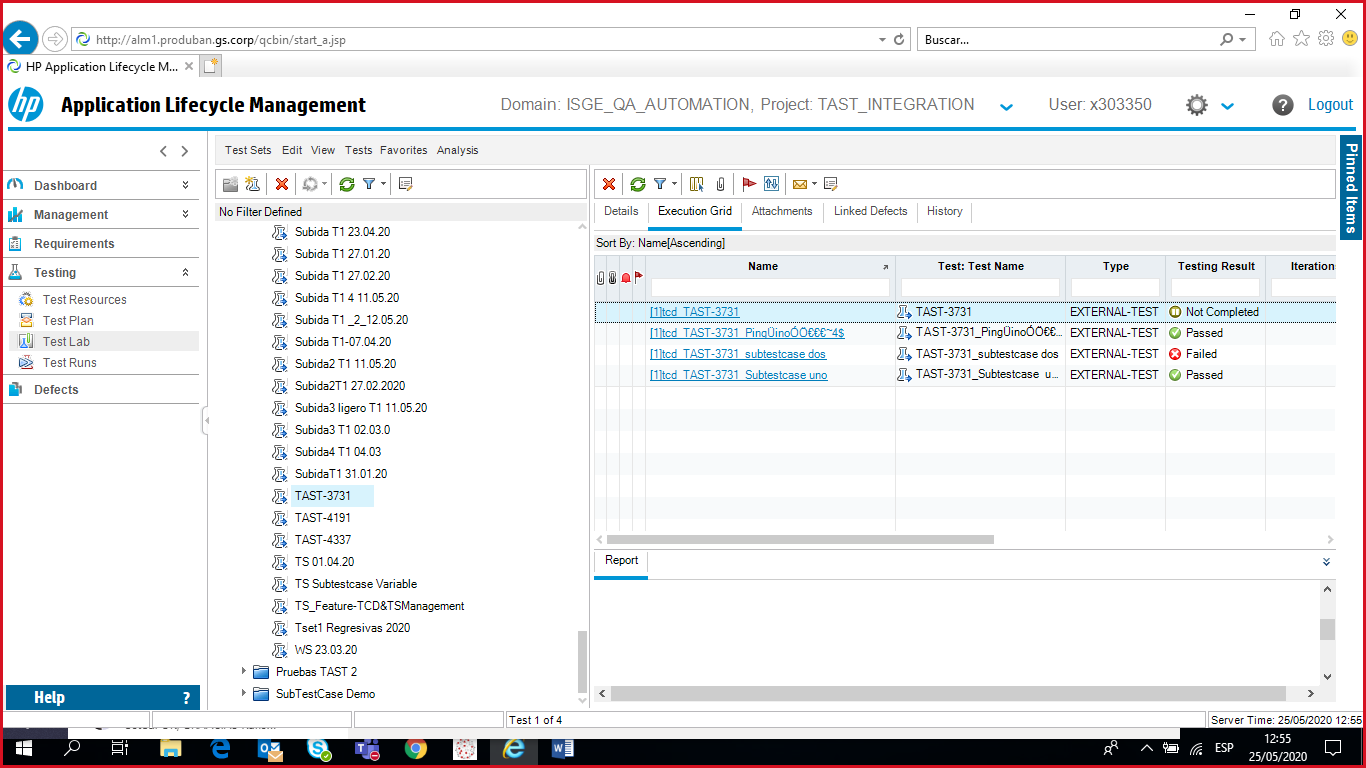

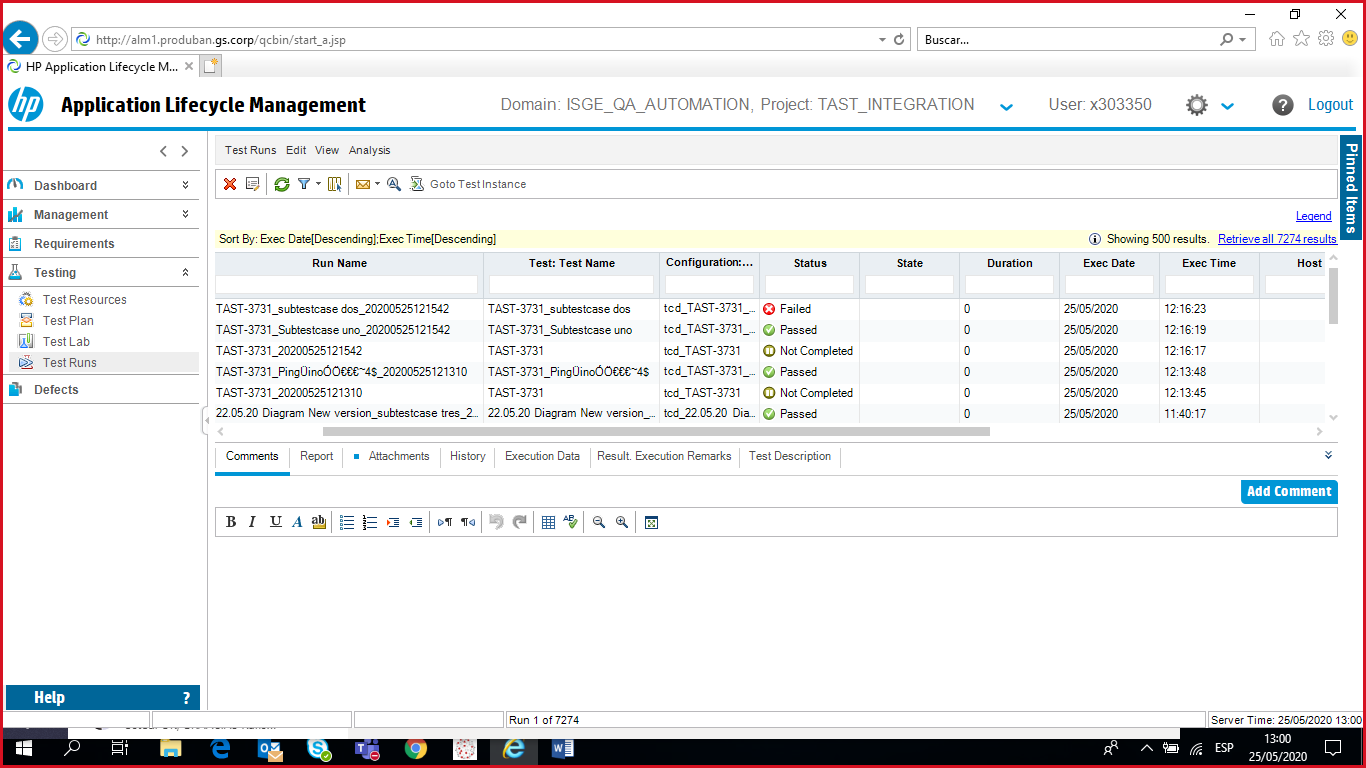

The main execution in ALM will have a similar name as TS Management with a black icon and Not Completed as the following images.
